400/350 69 Engine Question

I'm putting together an engine someone else took apart so I need a little help from someone who has overhaul experience.

My engine had no timing chain cover studs in the block. I know some of the 6 bolts that hold on the cover are studs. I'm going to number them left and right, looking at it and 1-3 from top to bottom, L-1, L-2, L-3, R-1, R-2, R-3.

The manual shows a picture of one stud, R-1, has a stud. Does anyone know which of the other 5 holes have studs as opposed to bolts? I see the power steering pump has a really long bolt that I assume goes into one of those holes, through the timing cover but I could use some advice on that too.

Thanks as always.
funbooker is offline   Reply With Quote
Sponsored Links
Advertisement

Old 12-09-2012, 03:24 PM   #2 (permalink)
Super Moderator

BearGFR's Avatar

Join Date: Aug 2008
Location: Garland, TX
Posts: 4,330
My Photos: (12)
Garage
It's not critical. You can build it with one, or two, or none. What really matters is getting the right number of fasteners in, at the right length, and properly tightened. The engine doesn't care if they're studs or bolts.

Bear
__________________
BearGFR
Garland, TEXAS
BearGFR is online now   Reply With Quote
Old 12-09-2012, 06:02 PM   #3 (permalink)

Join Date: Apr 2012
Posts: 36
My Photos: (0)
thanks Bear but the thing is, I want to button up the timing chain cover and the oil pan before putting the engine in the car. I'd like to know what gets tightened down now and what gets a bolt later, like the long one for the power steering pump. I don't want to take up a hole with a stud when a bolt is supposed to go in later. I'd like to do it right the first time and avoid having to do anything over.
funbooker is offline   Reply With Quote
Old 12-09-2012, 06:40 PM   #4 (permalink)
64-67 Expert

geeteeohguy's Avatar

Join Date: Feb 2008
Location: Fresno, California
Posts: 6,650
My Photos: (2)
The power steering pump bracket does not bolt through the timing cover, so no worries there. It bolts to the block, and the pump bolts to the bracket. The long bolt will go to the block or head. I would install the bracket prior to installing the engine in the car to make it easier to see what goes where, since you are not super familiar with it. On my cars, the timing cover studs are always at the top of the water outlet holes on each side of the block. Not needed (bolts will do), but the factory studs makeit easier to guide the timing cover into place without shifting the gasket, etc.
geeteeohguy is offline   Reply With Quote
Old 12-10-2012, 07:21 AM   #5 (permalink)

Join Date: Apr 2012
Posts: 36
My Photos: (0)
That's kind of what I was thinking. So does anything, brackets etc., bolt onto studs or bolts that hold the timing chain cover?
funbooker is offline   Reply With Quote
Old 12-10-2012, 07:55 PM   #6 (permalink)
Super Moderator

BearGFR's Avatar

Join Date: Aug 2008
Location: Garland, TX
Posts: 4,330
My Photos: (12)
Garage
Quote:
Originally Posted by funbooker View Post
That's kind of what I was thinking. So does anything, brackets etc., bolt onto studs or bolts that hold the timing chain cover?
On my 69, there are only two bolts that have anything "extra" on them. One is the long timing cover bolt (or stud) on the top passenger side that has the engine lift "loop" (and in my case, part of the A/C compressor bracket since I'm running an aftermarket a/c), the other is the front half of the alternator bracket.

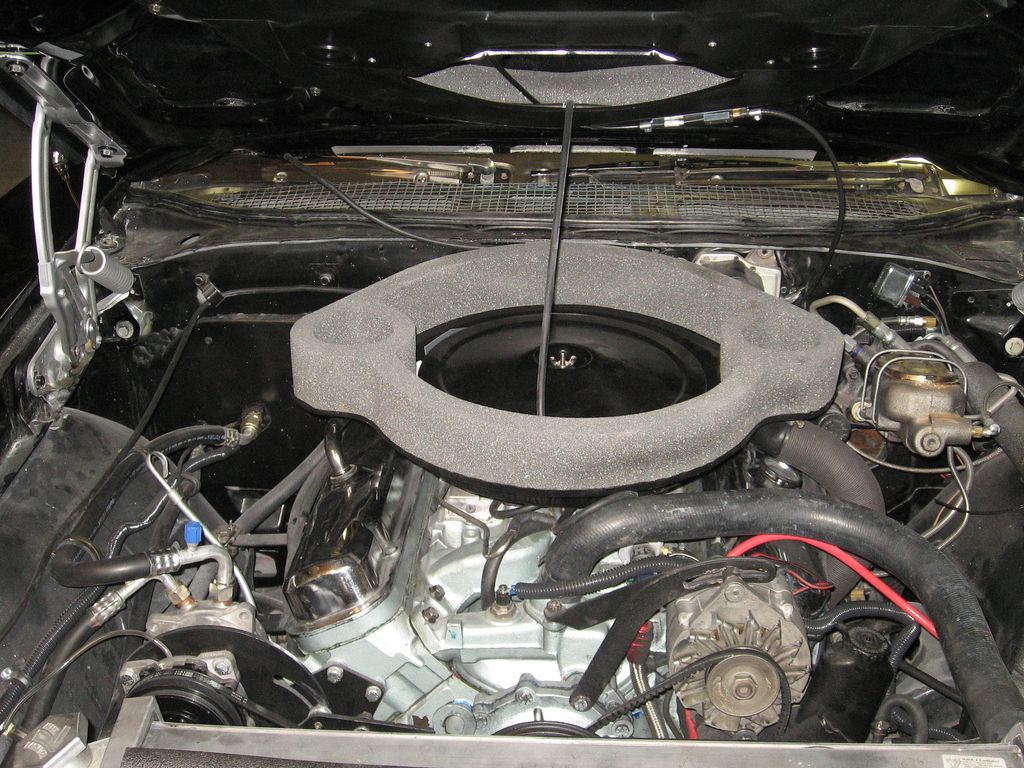

You can see both in this photo


Bear
__________________
BearGFR
Garland, TEXAS
BearGFR is online now   Reply With Quote
Old 12-11-2012, 09:59 AM   #7 (permalink)

Join Date: Apr 2012
Posts: 36
My Photos: (0)
picture's worth 1000 words, thanks. One more dumb question (for now) does the stud that holds the alternator get a nut for the timing cover and another one for the alternator or is there just one for both?
funbooker is offline   Reply With Quote
Old 12-11-2012, 12:16 PM   #8 (permalink)
64-67 Expert

geeteeohguy's Avatar

Join Date: Feb 2008
Location: Fresno, California
Posts: 6,650
My Photos: (2)
?????? I've never seen an alternator stud mount to a timing cover on one of these engines. What am I missing here???
geeteeohguy is offline   Reply With Quote
Old 12-11-2012, 12:44 PM   #9 (permalink)

Join Date: Oct 2012
Location: Texas
Posts: 555
My Photos: (7)
alt. bracket

On my '71 455, there is a large chrome alternator bracket which attaches directly to two water pump bolts. Then power steering attaches to that under it. PO must have installed that as an aftermarket chrome accessory package. That is absolutely the worst travesty of automotive engineering I've ever encountered! It is insanely difficult to get the pulleys to align properly, shim it here, shim it there. There's hardly any rear support! Love the chrome but hate the bracket...I want to put my old brackets on from the 326, but I doubt if it'll work...
gjones is offline   Reply With Quote
Old 12-11-2012, 07:20 PM   #10 (permalink)

Join Date: Dec 2011
Location: Duluth, MN
Posts: 85
My Photos: (0)
Quote:
Originally Posted by funbooker View Post
picture's worth 1000 words, thanks. One more dumb question (for now) does the stud that holds the alternator get a nut for the timing cover and another one for the alternator or is there just one for both?
I would just use one nut. (Hehehe one nut.....)
etewald is offline   Reply With Quote
