1966 differential ID

Ok, i have searched through old threads on here for quite a while tonight but i couldn't find the one i seem to have pictured in my mind were somebody linked to some different pictures showing the differences in axle assemblies.

I am positive that what I am working with is a BOP 10 bolt. My problem is I would prefer to have a matching differential if the current one is not. My car is an original auto-2spd with the original tri-power, and had factory Air. From what i've seen this means that I would have a 3.23:1 rear gear set. (I would keep this ratio)

I know for a fact that it is currently an open carrier, but I cannot find the code to say exactly what the axle expects (I know it should be WF) . I know precisely were the 2 letter code should be on the RH axle tube, and it is not there. I also have heard there was a stamping break down which resulted in the 2 letter code being moved to the top of the LH housing? were on the top LH side should it be? I cannot find the 2 letter code anywere. I do have easy access to two codes though:

It seems to read....
top tag: 1735

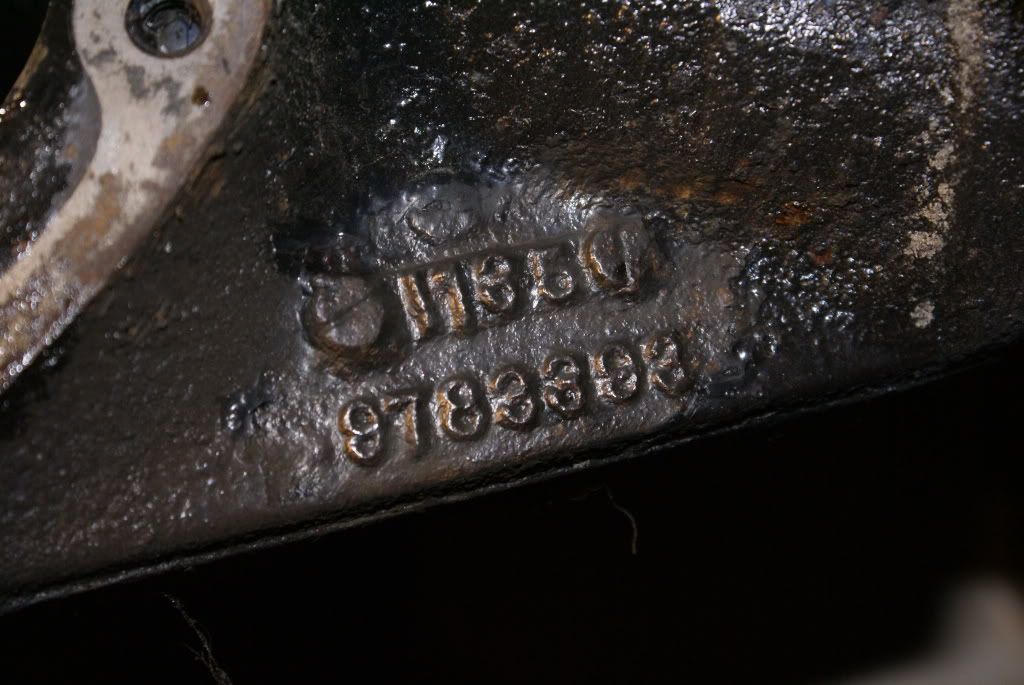

bottom casting: 9783393
^^Can anyone decode that???^^
